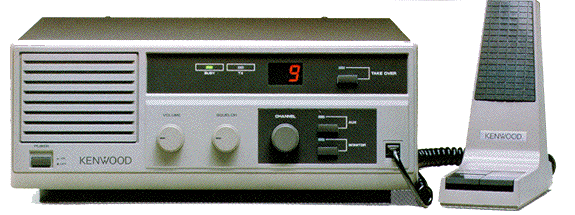

TKB-720 VHF Desk Top Base Radio
The Kenwood TKB-720 VHF desk-top base radio meets the demand of the land mobile market for quality, ruggedness and flexibility of application.  The TKB-720 utilizes a heavy die-cast chassis, modular construction, and high quality parts and sub-assemblies to maximized performance.

Features

Synthesized Channel capacity
High RF Output Power (50 watts)
Easy-to-Operate, Compact Desk-Top Design
High-performance Receive/Transmit
Broad Choice of Signaling Operation

Wideband Channel Frequency Spread

(7 MHz TX/4 MHz RX)
Easy-to-Operate front Panel Layout
Front mounted high quality speaker.

SPECIFICATIONS

General

TKB-720

Frequency Range, MHz

150-174

Num of Channels

9 semi-duplex (up to 16)

Channel Spacing, KHz

30

Operating Voltage

120VAC

Operating temp

(-30C ~ +60C)

RF Output, Watts

20-50
